STAINLESS STEEL U-DRAIN
ENGINEERED TO MAINTAIN HYGENIC STANDARDS
Stainless Steel U-drain is a durable and low maintenance food grade solution for environments where sanitation and corrosion-resistance are crucial. Created from high-quality stainless steel, it ensures exceptional durability, corrosion resistance, and easy maintenance. With its sleek and seamless design, stainless steel U-drain perfectly integrates into your floor, minimizing the risk of dirt and debris buildup.
Experience the ultimate solution for maintaining a clean and safe environments with U-drain Stainless Steel.
BENEFITS
LONG LASTING
All stainless steel U-drain products are made from high quality 304 Stainless Steel. For applications
that deal with highly corrosive drainage and/or sanitary concerns where bacteria buildup must be prevented, stainless steel provides unmatched performance and durability.
SANITARY DRAINAGE
U-drain’s single slot intake minimizes bacteria buildup and stays clean for longer than traditional grated drains. Unlike conventional drains with multiple components where bacteria and food particles can be trapped, U-drain's design reduces bacteria, food particles and moisture that can accumulate.
EASY TO MAINTAIN
U-drain's grate-free, clean-in-place design is ideal for food processing, breweries, wineries, and pharmaceutical facilities. Simply use the cleaning paddle to move solids to the sump, activate the flush nozzle, then insert the rubber drain stop to fill the system with sanitizing
solution.
FEATURES
HIGH OR LOW FLOW DRAINAGE
Stainless Steel U-drain is available in Residential and Commercial models to meet the drainage demands of a range of applications requiring low and high volume surface drainage. The Commercial U-drain (high flow) system comes in standard 10' pre-sloped lengths, supports flow rates over 950 GPM, and offers up to 240' of continuous slope with a center sump, making it perfect for heavy traffic areas. The Residential (low flow) U-drain system comes in standard 5' sections with a ½" slot opening, supports up to 240 GPM, and is ideal for smaller scale applications while still meeting the same structural ratings and certifications as the Commercial system. Both models feature a wide variety of sump pits and accessories to fit your space's needs.
SEAMLESS INSTALLATION

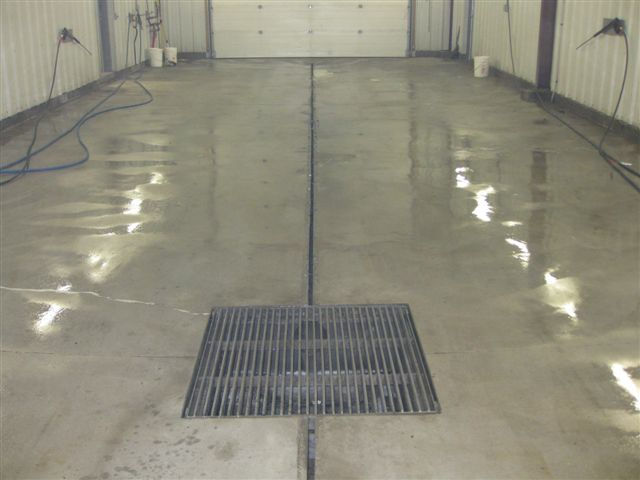

Stainless Steel U-drain is installed into a concrete floor, connecting directly into the rebar. Components bolt together for user-friendly assembly, with the system installed into the floor's rebar grid prior to concrete being poured and used as a center screed to maintain a consistent floor slope. Once poured, the narrow slot sits level with the floor for a low-profile, aesthetically pleasing finish.
U-DRAIN VS. GRATED DRAINS
Unlike traditional grated floor drains where multiple openings and edges allow dirt, debris, and bacteria to accumulate, U-drain's seamless, grate-free design significantly reduces contaminant buildup, resulting in a simplified cleaning process while maintaining a high sanitation standard. By eliminating grates and hidden crevices, U-drain provides a simplified cleaning process, ensuring no residue is left behind.
ADAPTABLE IN ANY APPLICATION
U-drain leads the industry with customizable floor drainage systems, tailored to each project's unique requirements. Deisgned to integrate seamlessly into any surface, from commercial kitchens and food processing facilities to healthcare settings and pharmaceutical labs, U-drain is built with top-quality materials and engineered with excellence. U-drain offers exceptional durability and performance under heavy loads and harsh conditions, while comprehensive support from consultation to installation ensures results that exceed expectations.
OPTIONS
SUMP PITS

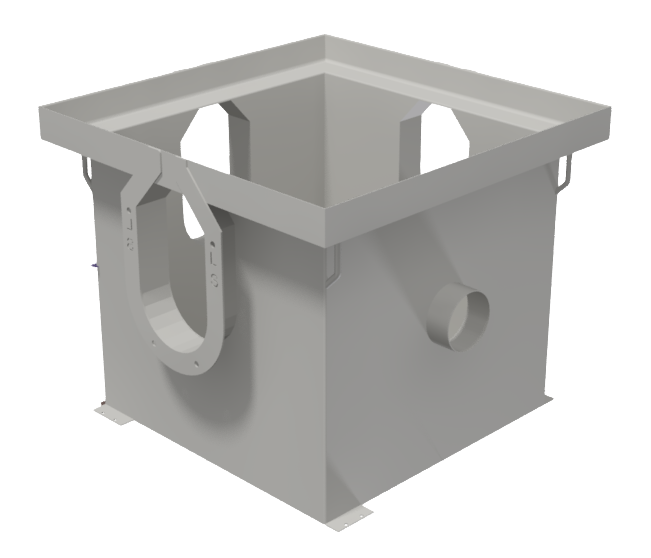

Stainless Steel U-drain offers a range of sump sizes and configurations to suit any drainage layout. Standard sizes include 18”x18”x24”, 24”x24”x24”, 36”x36”x36”, with custom depths available upon request. Each sump is available in single, double, or triple inlet configurations to accommodate multiple drag lines. All sump pits feature a 4.5” diameter outlet compatible with PVC or other discharge systems to efficiently remove water.
OIL SEPARATOR (OSR) PITS
Oil Separator (OSR) configurations are available for all standard sump sizes, and custom depths are available upon request. The OSR system works like a skimmer, using an elbow connection between the primary and the secondary sump pits. As a runoff enters the initial sump (connected to the drain sections), oil naturally rises to the surface while cleaner water flows through the elbow to the second sump. From there, it’s safely discharged to sanitary sewer lines.
SUMP LIDS
U-drain offers a variety of sump lid styles to suit different environments and drainage needs. Choose from Checkerplate, Slotted, or Grated designs (grated lids available for 24” and 36” sump sizes only). For Oil Separator (OSR) setups, a fully enclosed Checkerplate lid is available to contain and manage fluid separation effectively.
ANGLED SECTIONS
U-drain carries 45° and 90° angled sections to accommodate changes in drainage direction, perfect for layouts that aren’t just straight lines. A T-section is also available, allowing you to create junctions between multiple drain runs. These options make U-drain a versatile solution for complex drainage configurations.
SILT STRAINERS
In applications where solids or debris regularly enter the drainage system, U-drain offers a Silt Strainer Basket to capture and separate debris from liquid flow before it reaches the outlet. For heavy duty use, a full sump basket is also available. This option contains all collected material and can be easily removed and emptied as needed – ideal for high-frequency or high-volume drainage scenarios.
FLUSH NOZZLE
For added convenience, U-drain offers a Flush Nozzle attachment for the end of the system. Connect a water source using a ½” polyethylene pipe, and flush the drain on demand, quickly pushing debris toward the center sump for easy removal. This is a simple, effective way to keep your drainage system clear and performing at its best.
SPECIFICATIONS
STAINLESS STEEL U-DRAIN SECTION SPECS
U-DRAIN SUMP PIT SPECS
CERTIFICATIONS
U-drain meets all of the Canadian Food Inspection Agency (CFIA), Safe Quality Food Institute (SQFI) and United States Food and Drug Administration (FDA) requirements for food handling and processing facilities.
U-drain is also certified internationally certified by the National Sanitation Foundation (NSF).
